Description

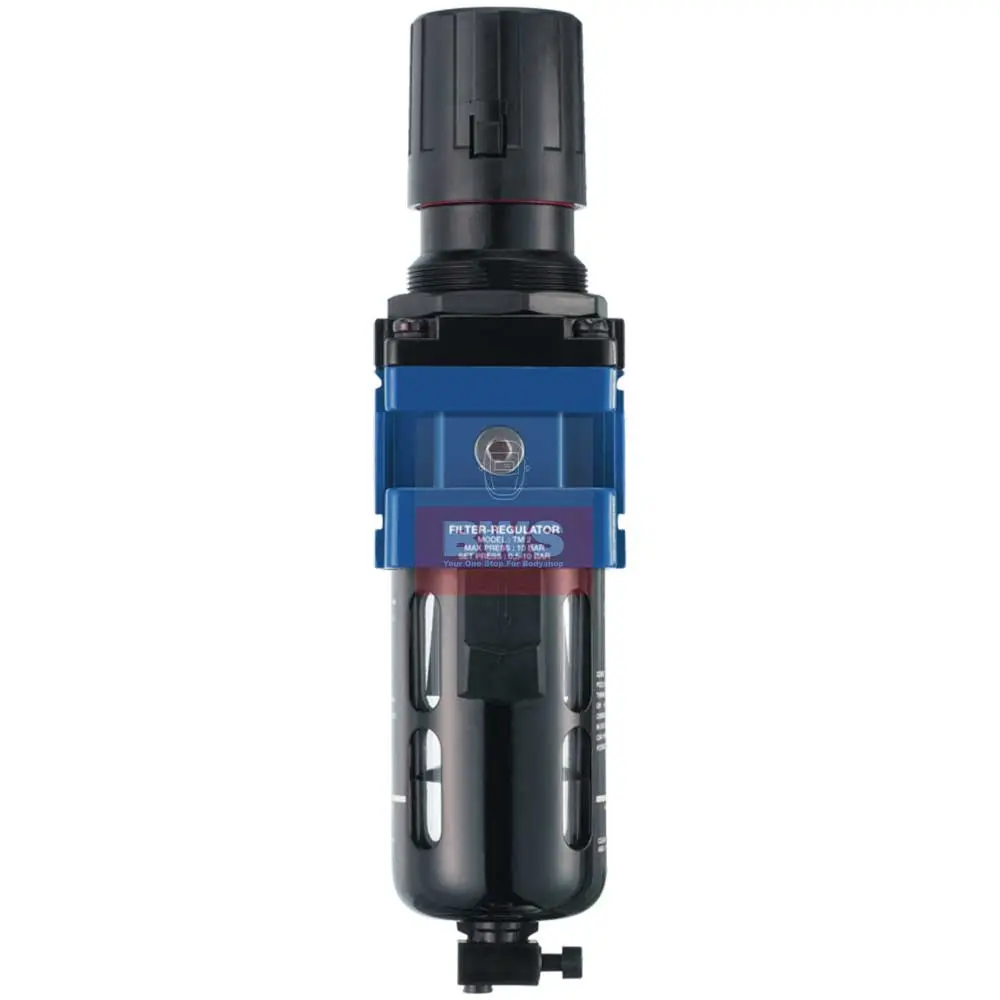

Prevost Alto 2 /S1 Wall Mount Filter Regulator
Alto 2 – Filter-Regulator (Gauge Included)
*WITH WALL BRACKET AND PREVOS1 SAFETY QUICK COUPLING
The Best for Bodyshop use!
TECHNICAL SPECIFICATIONS
- Temperature : +5°C to +50 °C
- Construction : Body : Aluminium Polycarbonate bowl with metallic protection
- Equipped with : Manual drain

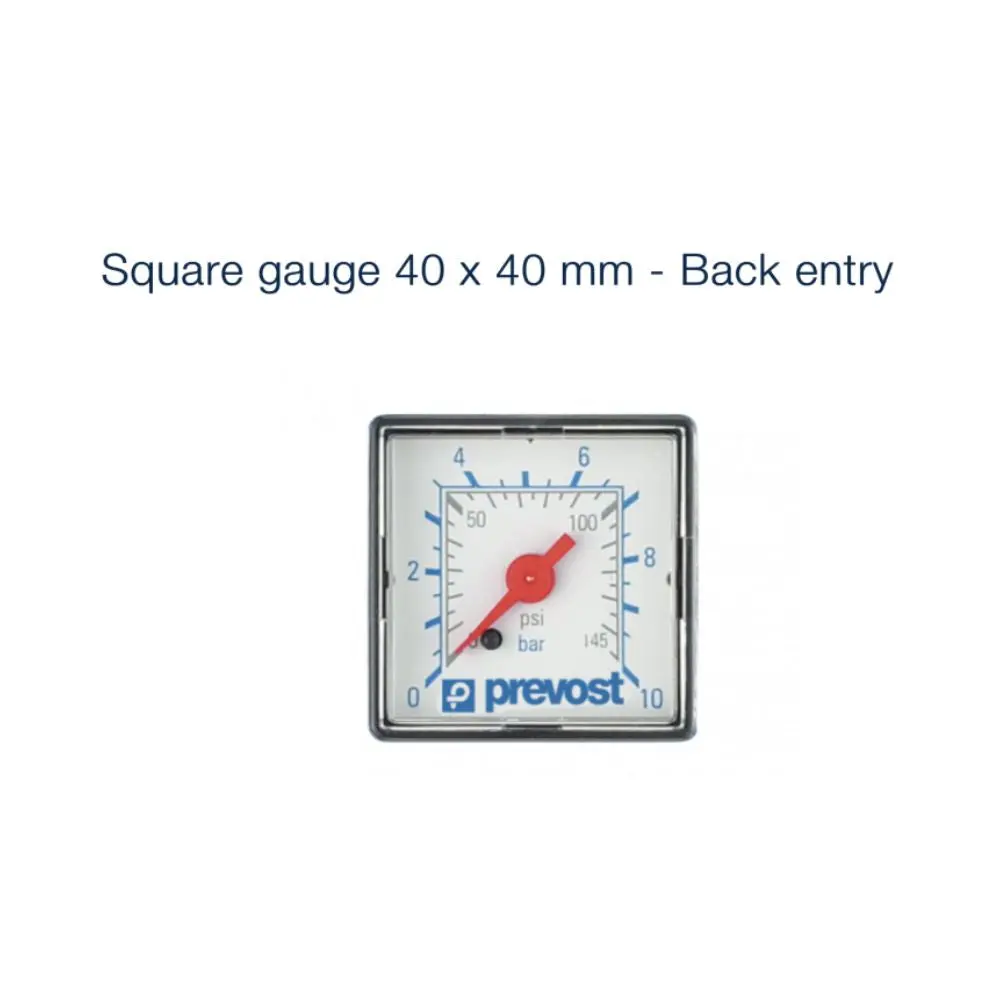

Equipped with a pressure gauge: 0 to 10 Bar
Max operating pressure: 12 Bar
TECHNICAL SPECIFICATION
| BSPP female thread | Flow rate (l/min at 7 bar ΔP=1b) | Max operating pressure (bar) | Filtration (µm) | Equipped with 1 coupling | Reference |
|---|---|---|---|---|---|
| G 3/8 | 750 | 12 | 25 | BSI 06 | KTMSM2BS |
| G 3/8 | 1800 | 12 | 25 | ESI 07 | KTMSM2ES |
| G 3/8 | 833 | 12 | 25 | ISI 06 | KTM SM2IS |
DIMENSIONS
| A (mm) | B (mm) | Reference |
|---|---|---|
| 55 | 220 | KTMSM2BS |
| 55 | 220 | KTMSM2ES |
| 55 | 220 | KTMSM2IS |
