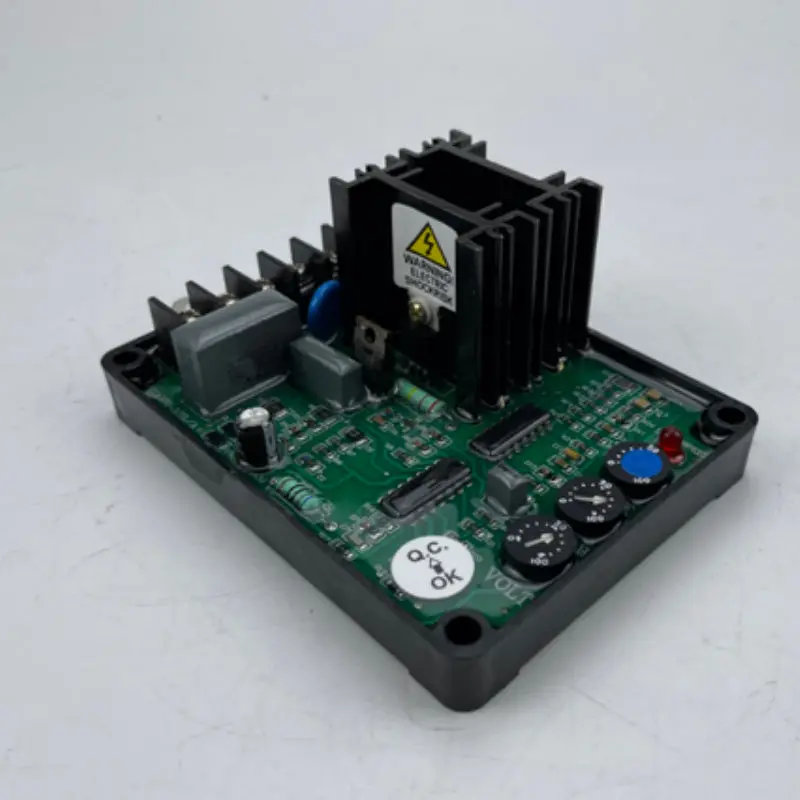

GAVR-12B AVR Automatic Voltage Regulator for 3 Phase Diesel Generator Set fits for Brushless Generator
DESCRIPTION:
Type: AVR
Condition: new
PMN:GAVR-12B
Manufacturer Warranty: 1 Year
Sensinginput voltage：180-260 VAC ,1phase,2 wire
power input voltage：180-260VAC, 1 phase, 2 wire
output voltage：Max.90 VDC @ 240 VAC input
current：Continuous 4A；Inermittent 7A for 10s
resistance：Min.12 ohm max.100 ohm
Volts regulation：< +/- 1% (with 4% engine governing )
Voltage build-up：Residual volts at AVR teminal> 5 VAC
External volts adjustment：+/- 7% with 1 k ohm watt trimmer
Soft start ramp time：2 secs
Unit power dissipation: Max 8 watt
Emi suppression:Internal electromagnetic inerference filtering
Thermal drift:0.03% per degree change in AVR ambient
Under frequency protection:60Hz system presets knee point at 55Hz
Factory settings:50Hz system presets knee point at 45Hz
Note:
1. Please make sure it will fit your machine before purchasing it. If you are not 100% sure this is what you need, please find out your engine model, series number and contact our Customer-service.
2. Please double check the part number of your item, matching information is for reference only.If you are unsure of the item, please contact us before buying to avoid unnecessary return, thanks!
3. Communication is the best way to solve the problem. If you have any problems after you receive the package, please contact us in time, before opening a return or case.
4.For more information please contact us info@diselmart.com. We will reply you in 24 hours.
