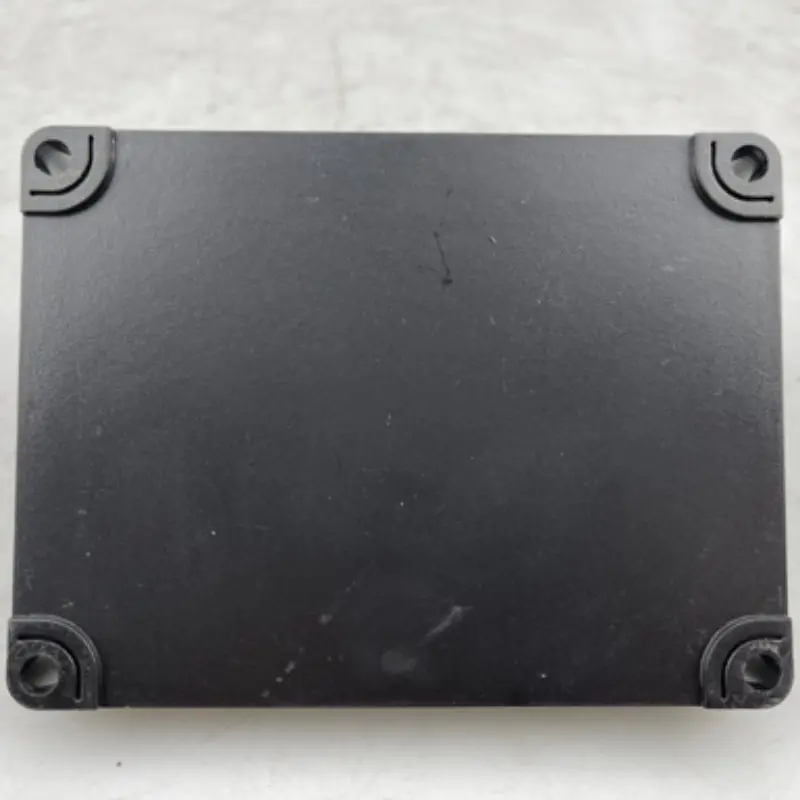

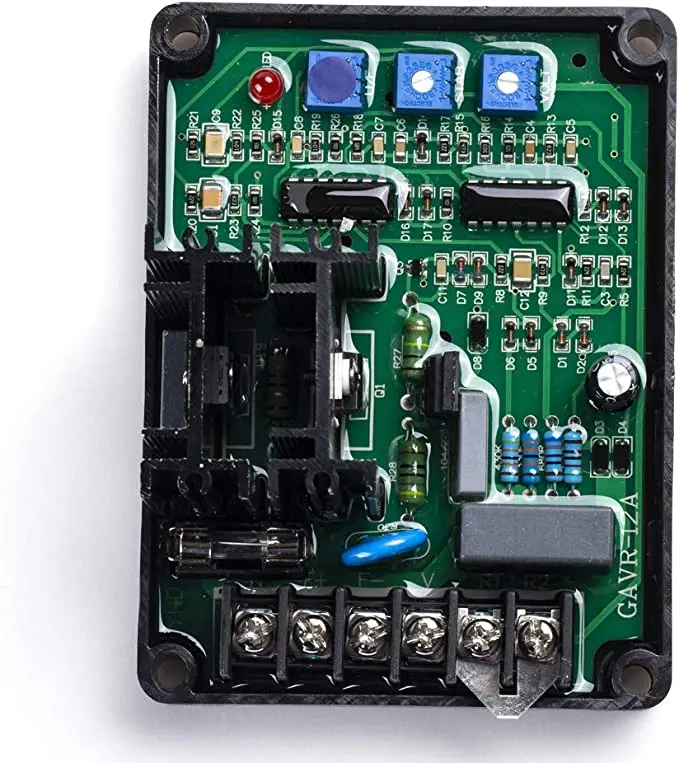

GAVR-12A AVR Automatic Voltage Regulator fits for Brushless 150KVA Generator Alternator
DESCRIPTION:
Type:AVR
Condition: new
PMN:GAVR-12A
Manufacturer Warranty: 1 Year
Features of AVR AVR-12A
² < 1% Regulation
² 220/440 VAC Programmable Input
² Rugged Compact Design
² With Under Frequency Protection
² Soft Start Voltage Ramping
² EMI Suppression
² Built-in Hihg Capacity 10Amp Fuse
Specifications for AVR GAVR-12A
² Sensing Input of AVR 12A : Voltage 180~260VAC,1phase2wire
² Power Input for Voltage Regulator 12A: Voltage 180~260VAC,1phase2wire
² Output of AVR GAVR-12A: Voltage Max.90VDC@240VACinput
² Current of Voltage Regulator AVR-12A: Continuous 4A
² Intermittent 7A for 10SEE.
² Resistance Min.12 Max.100
² Voltage Build-up: Residual volts at AVR terminal>5VAC
² External Volts Adjustment: 7%with 1K 1watt trimmer
² Soft Start Ramp Time: 2sec.
² Unit Power Dissipation: Max.8Watt
² EMI Suppression: Internal Electromagnetic Interference Filtering
² Thermal. Drift: 0.03%per change in AVR ambient
² Under Frequency Protection: 60Hz system presets knee point at 55Hz
² (Factory Settings) : 50Hz system presets knee point at 45Hz
Environment of GAVR 12A
Vibration 3G@100~2K Hz
Relative Humidity <95%
Operating Temperature -40~65℃
Storage Temperature -40~85℃
Note:
1. Please make sure it will fit your machine before purchasing it. If you are not 100% sure this is what you need, please find out your engine model, series number and contact our Customer-service.
2. Please double check the part number of your item, matching information is for reference only.If you are unsure of the item, please contact us before buying to avoid unnecessary return, thanks!
3. Communication is the best way to solve the problem. If you have any problems after you receive the package, please contact us in time, before opening a return or case.
4.For more information please contact us info@diselmart.com. We will reply you in 24 hours.
