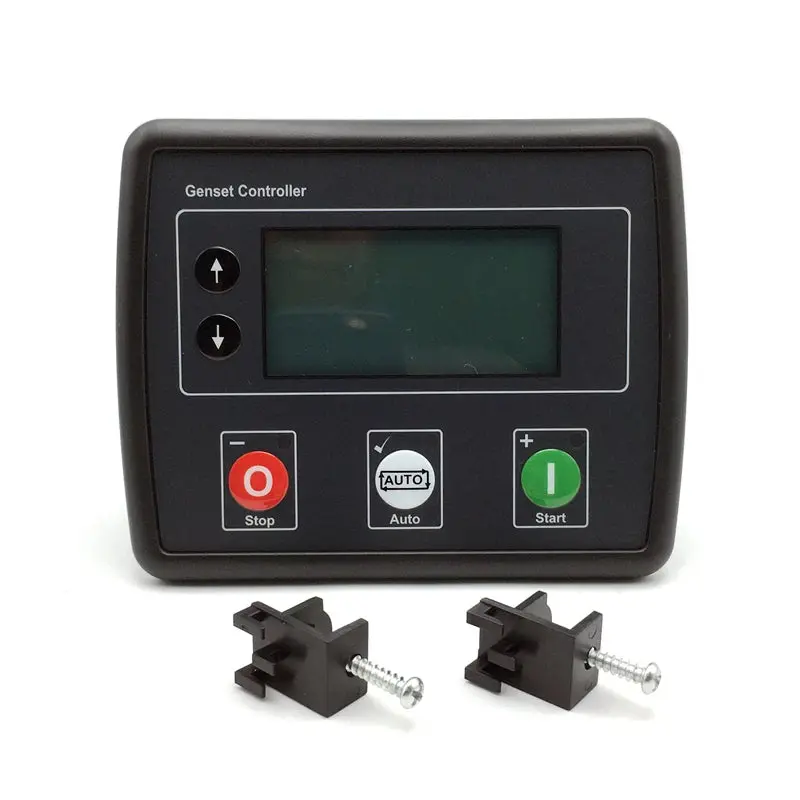

DSE4520 Generator Control Panel Power Diesel Genset Controller fits for Deep Sea
DESCRIPTION:
Type:Controller
Condition: new，replacement
PMN:DSE4520
Manufacturer Warranty: 1 Year
CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous
CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.
MAXIMUM OPERATING CURRENT
85 mA at 12 V, 96 mA at 24 V
MAXIMUM STANDBY CURRENT
51 mA at 12 V, 47 mA at 24 V
MAXIMUM SLEEP CURRENT
35 mA at 12 V, 32 mA at 24 V
MAXIMUM DEEP SLEEP CURRENT
<10 uA at 12 V, <10 uA at 24 V
MAINS (UTILITY)
VOLTAGE RANGE
15 V to 415 V AC (Ph to N)
26 V to 719 V AC (Ph to Ph)
FREQUENCY RANGE
3.5 Hz to 75 Hz
OUTPUTS
OUTPUT A (FUEL
10 A short term, 5 A continuous,
at supply voltage
OUTPUT B (START)
10 A short term, 5 A continuous,
at supply voltage
AUXILIARY OUTPUTS C, D, E & F
2 A DC at supply voltage
GENERATOR
VOLTAGE RANGE
15 V to 415 V AC (Ph to N)
26 V to 719 V AC (Ph to Ph)
FREQUENCY RANGE
3.5 Hz to 75 Hz
Note:
1. Please make sure it will fit your machine before purchasing it. If you are not 100% sure this is what you need, please find out your engine model, series number and contact our Customer-service.
2. Please double check the part number of your item, matching information is for reference only.If you are unsure of the item, please contact us before buying to avoid unnecessary return, thanks!
3. Communication is the best way to solve the problem. If you have any problems after you receive the package, please contact us in time, before opening a return or case.
4.For more information please contact us info@diselmart.com. We will reply you in 24 hours.
