Description

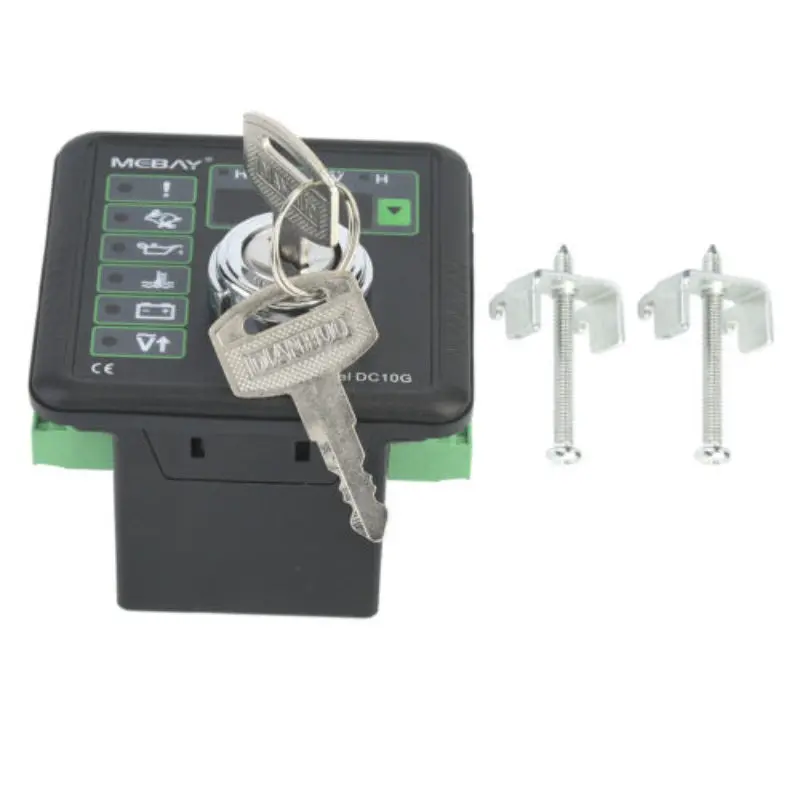

Generator Controller Module DC10G Manual And Automatic Start Control Panel
DESCRIPTION:
Type: Controller
Condition: new，replacement
PMN:DC10G
Manufacturer Warranty: 1 Year
Features:
1. Using 32-bit imported high-performance single chip microcomputer control.
2. 4-bit digital tube display, can be switched automatically or manually.
3. The vehicle starting key is durable.
4. With parameter setting function, you can set parameters through computer connection.
5. It has a variety of alarm protection functions.
6. Standard waterproof ring. The rear panel has anti-splash function.
7. All the wiring is completed through the European terminal. The assembly, connection, maintenance and replacement of the equipment is very easy and convenient.
Parameter display:
Generator voltage
Generator frequency
Engine battery voltage
Cumulative running time of the unit
Alarm protection
Speeding
Overclocking
Low oil pressure
High water temperature
External instant parking alarm
Power generation overvoltage
Charging failure warning
Specification:
Condition: 100% Brand New
Item Type: Engine Manual Start Controller
Power input:8-33 VDC
Power consumption: MAX 2W
Power generation input:15-300 VAC,50/60 Hz
Speed input: Freq 300Hz ~ 10kHz
Oil valve output: MAX 16A
Motor output: MAX 10A
Excitation output: MAX 80mA
Alarm output: MAX 16A
Operating temperature:-30-75 ℃
Storage temperature:-40-85 ℃
Dimensions: Approx. 78 * 78 * 72mm / 3.1 * 3.1 * 2.8in
Opening Hole Size: Approx. 67 * 67mm / 2.6 * 2.6in
Note:
1. Please make sure it will fit your machine before purchasing it. If you are not 100% sure this is what you need, please find out your engine model, series number and contact our Customer-service.
2. Please double check the part number of your item, matching information is for reference only.If you are unsure of the item, please contact us before buying to avoid unnecessary return, thanks!
3. Communication is the best way to solve the problem. If you have any problems after you receive the package, please contact us in time, before opening a return or case.
4.For more information please contact us info@diselmart.com. We will reply you in 24 hours.
