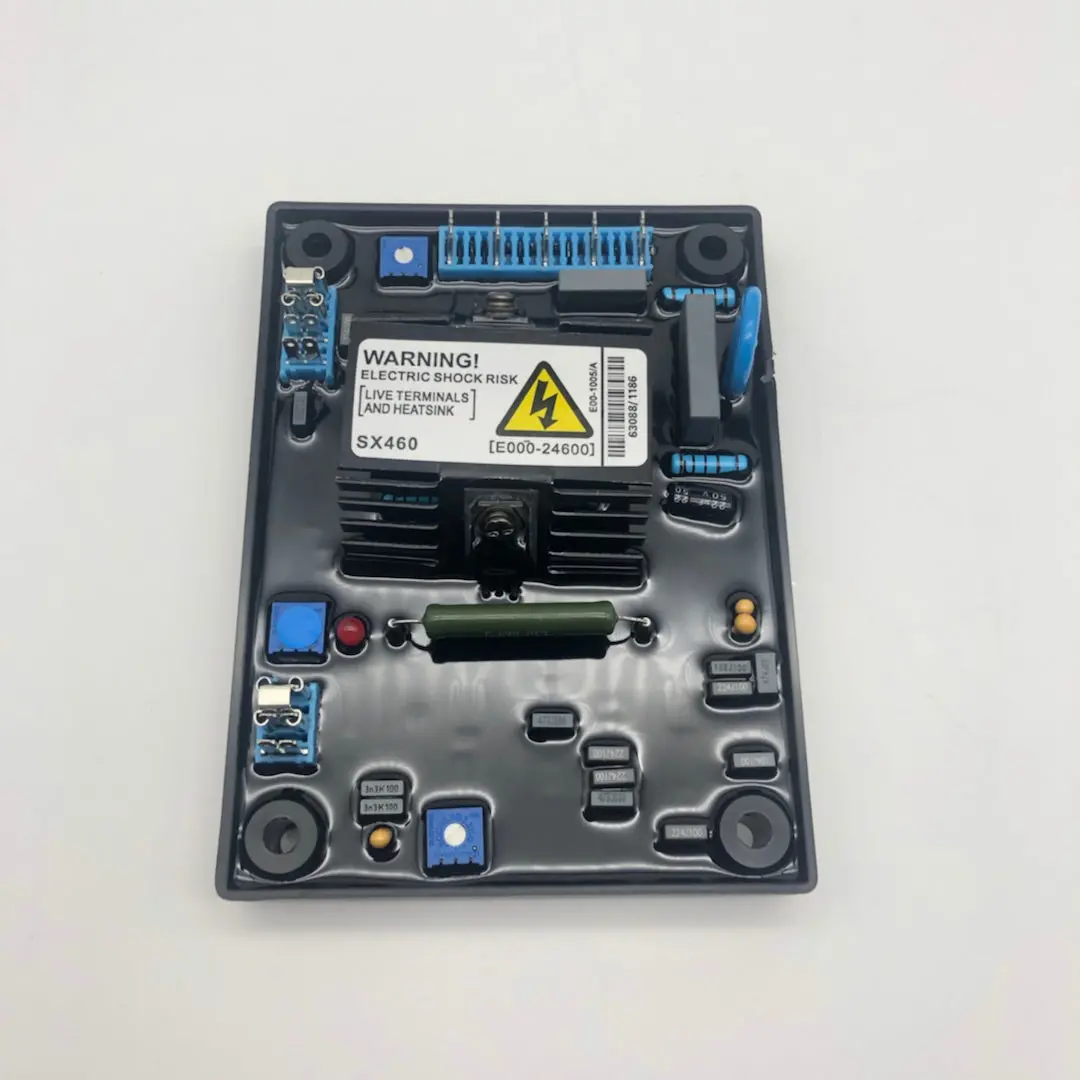

SX460 AVR Automatic Voltage Regulator Control Moudle fits for Generator Genset
DESCRIPTION:
Type: Automatic Voltage regulator(AVR)
Part Number：SX460Condition: new，replacementManufacturer Warranty: 1 Year
INPUT
Voltage: Jumper selectable, 95-132V ac or,190-264V ac
Frequency: 50-60 Hz nominal
Phase: 1
OUTPUT
Voltage: max 90V dc at 207V ac input
Current: continuous 4 A dc, Intermittent 6 A for 10 secs
Resistance: 15 ohms minimum
REGULATION
+/- 1.0% (see note 1)
THERMAL DRIFT
0.05% per deg. C change in AVR ambient
TYPICAL SYSTEM RESPONSE
AVR response 20 ms
Filed current to 90% 80 ms
Machine Volts to 97% 300 ms
EXTERNAL VOLTAGE ADJUSTMENT
+/-10% with 1 k ohm 1 watt trimmer (see note 3)
UNIT POWER DISSIPATION
10 watts maximum
Note:
1. Please make sure it will fit your machine before purchasing it. If you are not 100% sure this is what you need, please find out your engine model, series number and contact our Customer-service.
2. Please double check the part number of your item, matching information is for reference only.If you are unsure of the item, please contact us before buying to avoid unnecessary return, thanks!
3. Communication is the best way to solve the problem. If you have any problems after you receive the package, please contact us in time, before opening a return or case.
4.For more information please contact us info@diselmart.com. We will reply you in 24 hours.
