Description

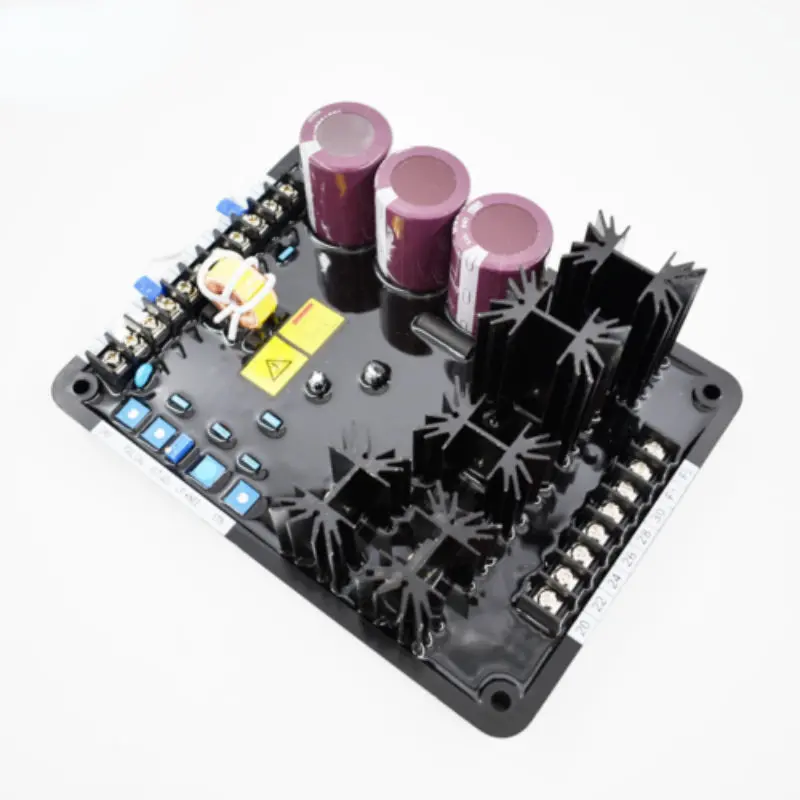

K65-12B AVR Automatic Voltage Regulator fits for Caterpillar Generator
DESCRIPTION:
Type:AVR
Condition: new,replacement
PMN:AVR-VR6 K65-12B K125-10B
Manufacturer Warranty: 1 Year
Output power (with a 240Vac Input):
12 Adc @ 65 Vdc maximumcontinuous.
25 Adc @ 125 Vdc forcing for 10seconds.
AC input power:
100 to 280 Vac, single-phase 50
to 400 Hz, or 63 to 105 Vac; three phase,
50 to 400 Hz, 1092 VA
maximum continuous burden
AC sensing voltage:
90 to 140 Vac, 50/60 Hz; single- orthree-phase.
External voltage adjustrheostat:
10k ohm, 2 W, potentiometer
Regulation accuracy:
±0.5% Average responding
Voltage drift:
±1% voltage variation for a 40° C(104° F) change.
Response time:
<4 milliseconds
Frequency compensation:
1 or 2 V/Hz jumper selectable with
knee adjustable from 45 Hz to 65Hz.
EMI suppression:
Internal filter
Voltage Build-Up:
Internal provisions for automatic
voltage build-up from generator
residual voltages as low as six Vac.
Over excitation shutdown:
Over excitation protection starts
timing at 90 Vdc ±5% and takes
the output to zero in greater than
30 seconds. The output can be 125
Vdc for greater than 10 seconds.
Droop：
1 Aor 5 A, <10 VA, adjustable from
0 to 10% at rated input current, 0.8
power factor
UL recognized/CSA certified：
UL Recognized per Standard 508,
UL File NO. E97035. CSA certified
per Standard CAN/CSA-C22.2 No.
14-95, CSA File No. LR 23131
Note:
1. Please make sure it will fit your machine before purchasing it. If you are not 100% sure this is what you need, please find out your engine model, series number and contact our Customer-service.
2. Please double check the part number of your item, matching information is for reference only.If you are unsure of the item, please contact us before buying to avoid unnecessary return, thanks!
3. Communication is the best way to solve the problem. If you have any problems after you receive the package, please contact us in time, before opening a return or case.
4.For more information please contact us info@diselmart.com. We will reply you in 24 hours.
