Description
Universal vehicle body repair bench for heavy structural or light frame repairs.
The bench jig 10,000 is available in 3 lenths 5.0 m ,5.5m,and 6.0m for commercial vehicles etc
Easy vehicle loading and fast set up, for quick and more cost effective repairs.
Featuring 360 degree pulling facility complete with 2 x draw aligners, each delivering 10 ton pulling force complete with hydraulic foot pumps.

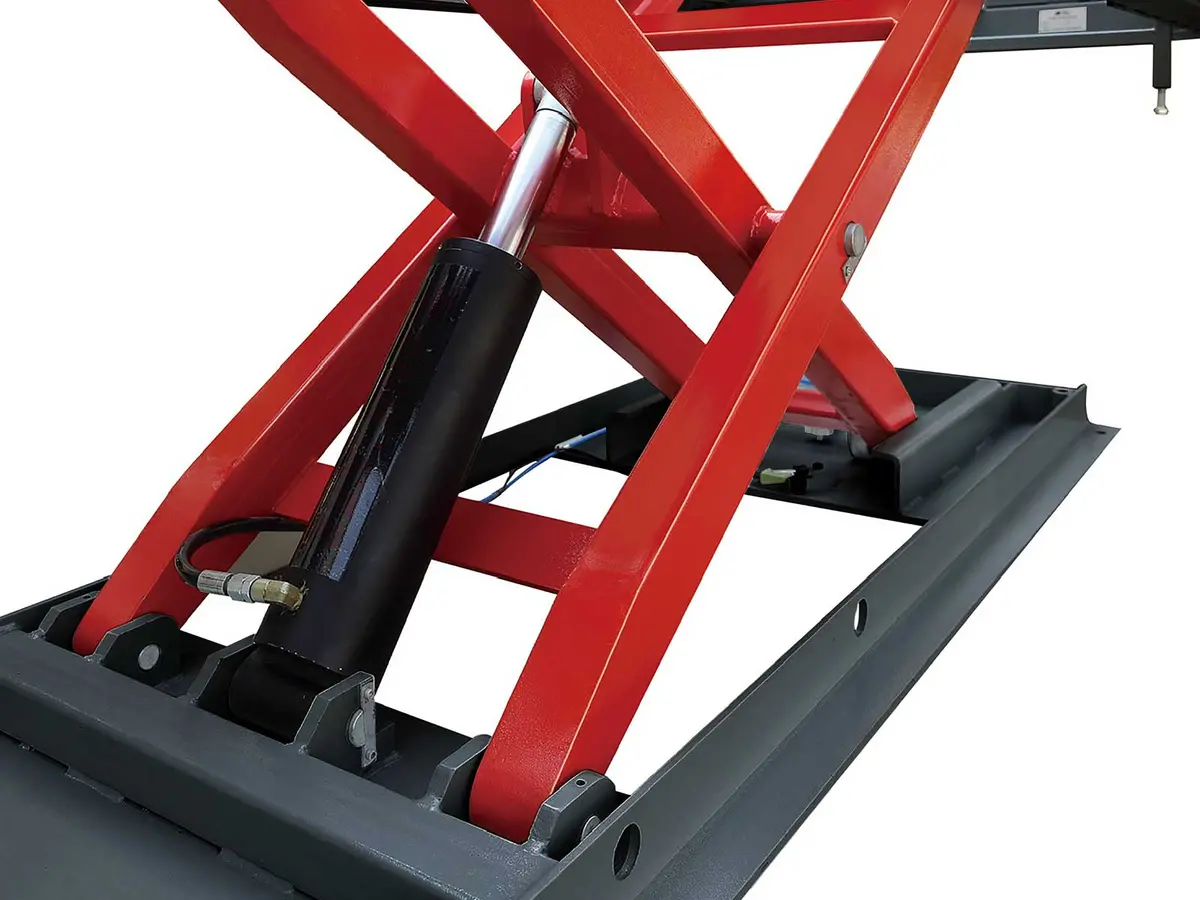

The Bench features an internal scissor lift raising vehicles up to 1190mm and with a lifting capacity of 4500kg.
The bench has a tilt function and drive on boards for easy access and stable vehicle support, enhancing safety and control.
The bench is supplied with 4 x bench mounts and sill clamps and a selection of pulling accessories clamps and chains etc.
Fully supported by our in house technical support team.
Technical Specification
-
FRAME LENGTH: 5000/5500/6000mm
-
FRAME WIDTH:1170mm
-
LIFTING CAPACITY: 4500kg
-
PULLING POWER: 10 Ton
-
MAX LIFTING HEIGHT: 1190mm
-
VOLTAGE: 415V
