Description
Brand: GYS Type: Riveting Equipment

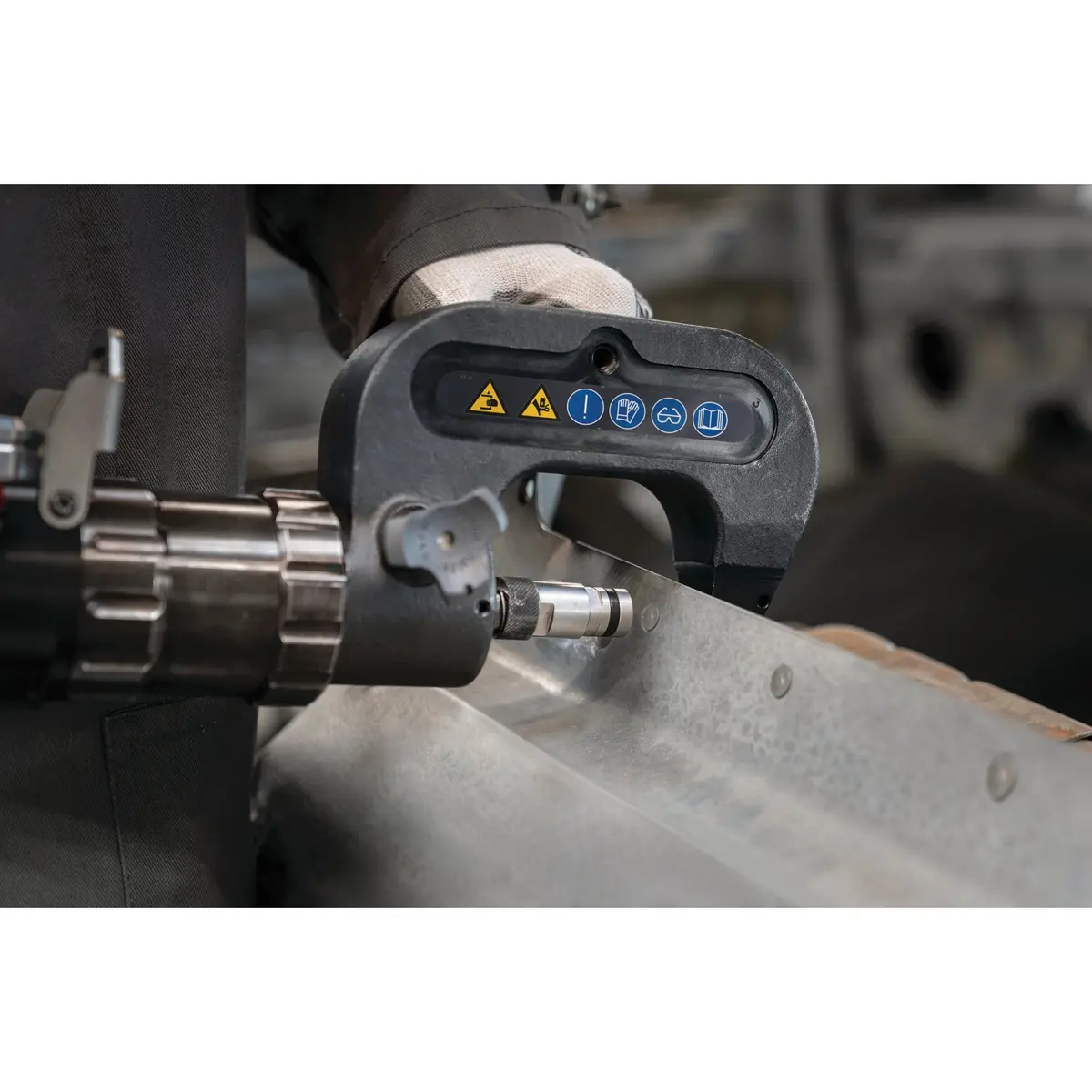

WORKSTATION GYSPRESS 10T PP CONTROL – Push Pull Riveter
The GYS GYSPRESS 10T PP CONTROL is a state-of-the-art push-pull riveting workstation designed for high-precision vehicle body repairs. Manufactured in France, this advanced system combines hydraulic precision, smart control technology, and multi-brand compatibility, making it the ideal solution for modern aluminium and steel panel repairs.
Key Features
Smart Riveting System
- Synergic mode: Intelligent user interface automatically guides you in selecting the correct dies and installation force for each type of rivet.
- Traceability built in: Every riveting operation can be recorded and exported to a PC for complete traceability—essential for OEM-approved repair standards.
- 5-inch colour touchscreen: Simple, intuitive navigation with quick access to settings and diagnostics.
Regulated Riveting Force
- Built-in hydraulic pressure sensor ensures precise force control within ±2.5%.
- Delivers a maximum force of 100 kN, adjustable to match the rivet and substrate.
- Guarantees consistent and accurate rivet installations every time.
Multi-Brand Compatibility
Designed for use on vehicles from leading manufacturers, including: VW Group, Mercedes-Benz, BMW, Tesla, Ferrari, Ford, General Motors, and more.
Robust and Mobile Design
- Heavy-duty steel trolley with integrated storage compartment.
- Front wheel spacer for enhanced stability during operation.
- Three-arm support system provides balance and ergonomic handling.
- C-arm rotates 360° for easy access to hard-to-reach areas.
- Quick-change arms for rapid adaptation to different repair scenarios.
- Ergonomic handle and single-finger trigger for precise control.
Push-Pull Innovation
The GYSPRESS 10T PP CONTROL uses the latest Push-Pull System to simplify rivet removal and die extraction after piercing sheet metal. This patented stripping mechanism reduces downtime and improves workflow efficiency.
Technical Specifications
| Specification | Detail |
|---|---|
| Reference | 063860 |
| Maximum Force | 100 kN |
| Force Accuracy | ±2.5% |
| Cycle Time | 4 seconds (normal) |
| Maximum Air Pressure | 6.5 bar |
| Weight (Tool Only) | 4 kg |
| Tool Dimensions | 46 × 15 × 10 cm |
| Total Unit Weight | 54 kg |
| Workstation Dimensions | 74 × 116 × 50 cm |
| Power Supply | Pneumatic |
| Certifications | EN 693:2001+A2:2011, EN 792-13:2000+A1:2008, EN ISO 11148-1:2011 |
Included Equipment
- Standard 10T Push-Pull Tool Box
- USB Key for Traceability Reports
- Strap, Dowel Pin, Handle
- Cable (3 m)
- Arm Support and Storage Compartment
Optional Accessories
| Accessory | Description | Reference |
|---|---|---|
| HR110 Riveting Arm | Standard Arm | 063310 |
| HR210 Riveting Arm | Extended Arm | 063327 |
| HR310 Riveting Arm | Extra-Long Arm | 063334 |
| Extension Lead | For HR110 & HR210 Arms | 058644 |
| Adaptor 24 kN | Pressure Conversion Adaptor | 063822 |
| Adaptor 50 kN | Pressure Conversion Adaptor | 064867 |
| Evolution Pressure Sensor | Upgrade Kit | 071759 |
| RAP Rivets (6×50) | Replacement Rivets | 048706 |
Why Choose GYS from BWS Ltd
As an approved GYS service centre with a nationwide team of trained engineers, BWS Ltd offers full sales, setup, and after-sales support for the GYSPRESS range. Buying from BWS ensures your investment includes:
- Certified installation and training
- Ongoing calibration and servicing
- Expert support from real bodyshop engineers
Summary
The GYS GYSPRESS 10T PP CONTROL is not just a riveter—it’s a complete workstation for OEM-compliant aluminium and mixed-material repairs. With smart control, full traceability, and multi-brand adaptability, it sets the standard for modern vehicle body repair workshops.
FAQs
Q: What types of rivets can this workstation handle?
A: The GYSPRESS WORKSTATION 10T can install various manufacturer-specific rivets, including self-punching rivets, Flow-Form rivets, and solid rivets.
Q: How does the Synergic Mode work?
A: The Synergic Mode guides the user on which dies to use and the required force, based on manufacturer specifications, ensuring optimal riveting performance.
Q: Can the riveting operations
