Description

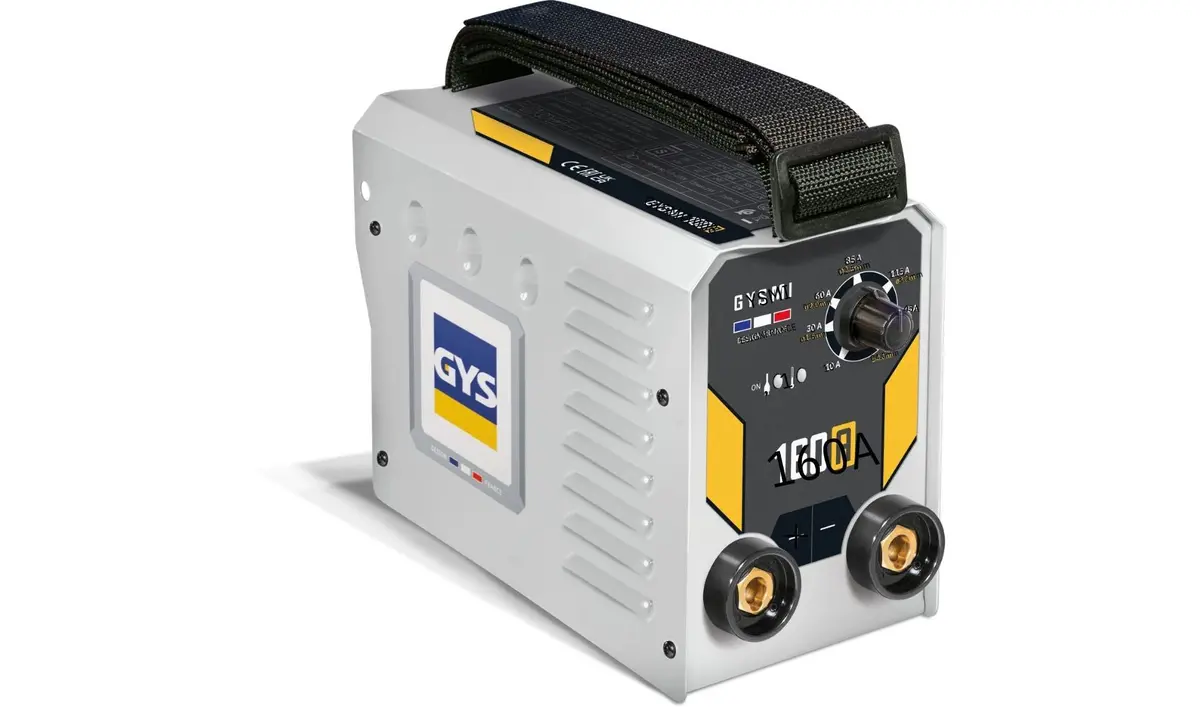

Professional 160A Single-Phase MMA Inverter with Advanced Arc Stability
The GYSMI 160A is a powerful and compact single-phase MMA inverter welder designed for professional fabrication, repair, and maintenance work. Built with advanced IGBT inverter technology, it delivers a welding current range from 10 to 160 amps, ensuring consistent output, excellent arc ignition, and smooth metal fusion. The high open-circuit voltage guarantees immediate arc striking, while constant current control provides stable penetration and superior weld quality on mild steel, stainless steel, and cast iron up to 10 mm thick. Supporting coated electrodes up to 4.0 mm diameter, the unit integrates Hot Start, Arc Force, and Anti-Sticking functions for improved usability and reduced electrode sticking. Weighing just 2.9 kg and featuring a compact design with shoulder strap, the GYSMI 160A is ideal for both workshop and on-site use. Generator compatibility and protection against voltage fluctuations (±15%) ensure dependable operation in demanding environments.
WHY BUY FROM BWS?
.bws-benefits { max-width: 800px; margin: 0 auto; padding: 10px;}.bws-benefits h3 { text-align: left; margin-bottom: 15px;}.image-container { display: flex; justify-content: left; gap: 10px; margin-bottom: 15px;}.benefit-image img { width: 100px; height: 100px; object-fit: contain; margin-bottom: 16px;}.benefits-container { display: flex; justify-content: center; align-items: left; gap: 20px; padding: 15px; background: #f5f5f5; border-radius: 5px;}.benefit-item { font-size: 14px; color: #333; display: flex; align-items: left; gap: 5px;}.checkmark { color: #4CAF50; font-weight: bold;}@media (max-width: 600px) { .image-container { flex-direction: column; align-items: left; } .benefits-container { flex-direction: column; gap: 10px; }}
Specification
- Welding current range: 10 – 160 A
- Power supply: 230 V, single-phase, 50/60 Hz
- Maximum electrode diameter: Ø 4.0 mm
- Suitable material thickness: Up to 10 mm
- Duty cycle: 160 A @ 60%
- Dimensions: 23 x 15 x 10 cm
- Weight: 4.54 kg
- Protection rating: IP21
- Generator compatible (±15% voltage variation)
Features
- Advanced IGBT inverter technology for stable arc control
- High open-circuit voltage for immediate arc ignition
- Hot Start function for improved start-up performance
- Arc Force to maintain arc stability in demanding welds
- Anti-Sticking system to reduce electrode seizure
- Compact and lightweight with integrated carry strap
- Overcurrent protection for enhanced machine durability
FAQs
1. What materials can the GYSMI 160A weld?
It is suitable for welding mild steel, stainless steel, and cast iron up to approximately 10 mm thickness.
2. What size electrodes can be used?
The unit supports most coated electrodes, including rutile and basic types, up to 4.0 mm diameter.
3. Can this welder operate from a generator?
Yes, it is compatible with generator power supplies and protected against voltage fluctuations of ±15%.
4. Is the machine suitable for professional applications?
Yes, its 160A output capacity and advanced welding aids make it ideal for professional workshop and on-site welding tasks.
