Description

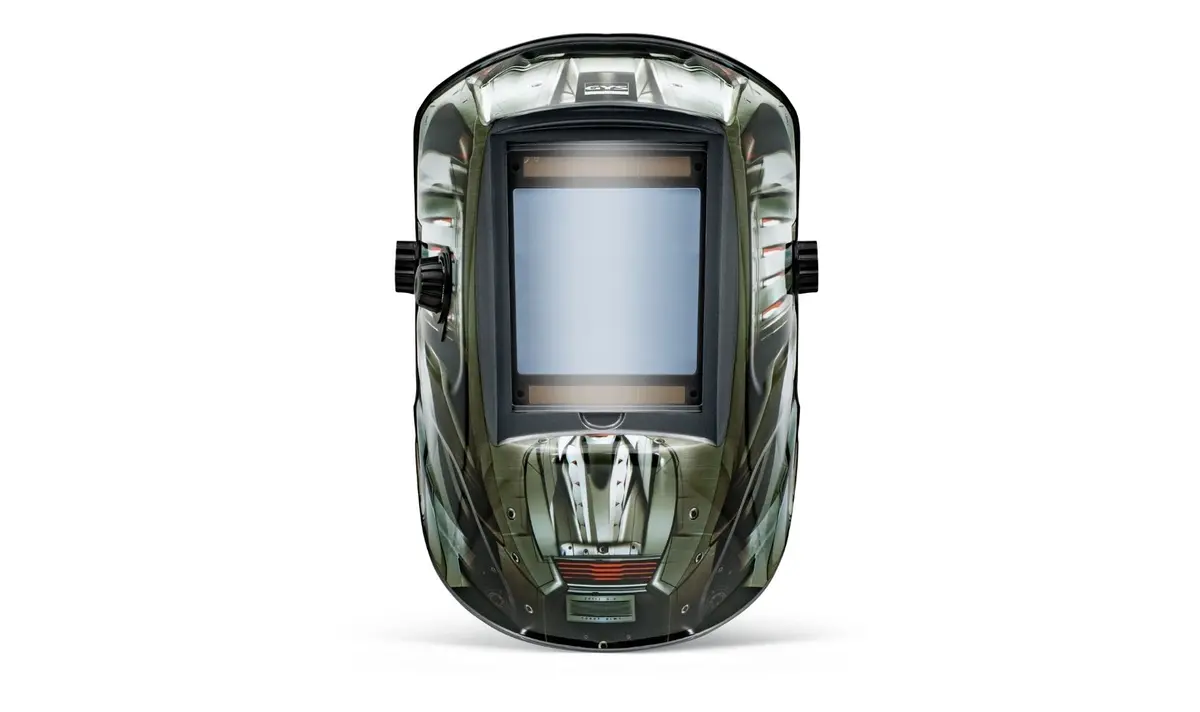

XXL Auto-Darkening TRUE COLOR Welding Hood with Wide 100 x 93 mm Vision
The ALIEN XXL+ TRUE COLOR welding helmet is a high-performance auto-darkening optoelectronic hood designed to deliver superior visibility, comfort and protection in demanding welding environments. Featuring an extra-large 100 x 93 mm viewing area and TRUE COLOR LCD technology, it provides enhanced colour recognition and improved weld pool clarity. With a light shade of DIN 3 and adjustable dark shade ranges of 5–9 and 9–13, the helmet is suitable for MMA, TIG (from 2A) and MIG/MAG applications up to 400A. Four integrated arc sensors ensure rapid 0.08 ms switching speed for reliable eye protection against UV/IR radiation (DIN 15). External shade and grind controls combined with internal sensitivity and delay adjustments allow precise customisation. Lightweight at just 560 g and supplied with a MultiFit+ headband, the ALIEN XXL+ ensures ergonomic comfort and dependable performance for professional welders.
WHY BUY FROM BWS?
.bws-benefits { max-width: 800px; margin: 0 auto; padding: 10px;}.bws-benefits h3 { text-align: left; margin-bottom: 15px;}.image-container { display: flex; justify-content: left; gap: 10px; margin-bottom: 15px;}.benefit-image img { width: 100px; height: 100px; object-fit: contain; margin-bottom: 16px;}.benefits-container { display: flex; justify-content: center; align-items: left; gap: 20px; padding: 15px; background: #f5f5f5; border-radius: 5px;}.benefit-item { font-size: 14px; color: #333; display: flex; align-items: left; gap: 5px;}.checkmark { color: #4CAF50; font-weight: bold;}@media (max-width: 600px) { .image-container { flex-direction: column; align-items: left; } .benefits-container { flex-direction: column; gap: 10px; }}
Specification
- Viewing area: 100 x 93 mm (XXL screen)
- Optical classification: 1/1/1/1
- Light shade: DIN 3
- Dark shade range: 5–9 / 9–13
- Reaction time: 0.08 ms
- Return to clear state: 0.15 – 0.8 sec (adjustable)
- UV/IR protection: DIN 15
- Power supply: Solar + CR2032 battery
- Weight: 1.02 kg
- Standards: EN 175B / EN 166 / EN 379
Features
- TRUE COLOR LCD technology for enhanced visual clarity
- Extra-large 100 x 93 mm field of vision
- Four arc sensors for high sensitivity performance
- Suitable for TIG welding from 2A
- External shade and grinding controls
- Internal adjustable sensitivity and delay settings
- Dual shade range for low and high intensity welding
- Integrated grind lock mode
- Lightweight ergonomic design with MultiFit+ headband
FAQs
1. What welding processes is the ALIEN XXL+ suitable for?
It is suitable for MMA (5–400A), TIG (2–300A) and MIG/MAG (5–400A) welding applications.
2. Does the helmet support low-amperage TIG welding?
Yes, it operates effectively for TIG welding from as low as 2 amps.
3. What is the advantage of the XXL viewing screen?
The 100 x 93 mm viewing area provides improved peripheral vision and better weld pool visibility.
4. Can the shade and sensitivity be adjusted?
Yes, shade adjustment is externally accessible, while sensitivity and delay settings are adjustable internally for precise control.
