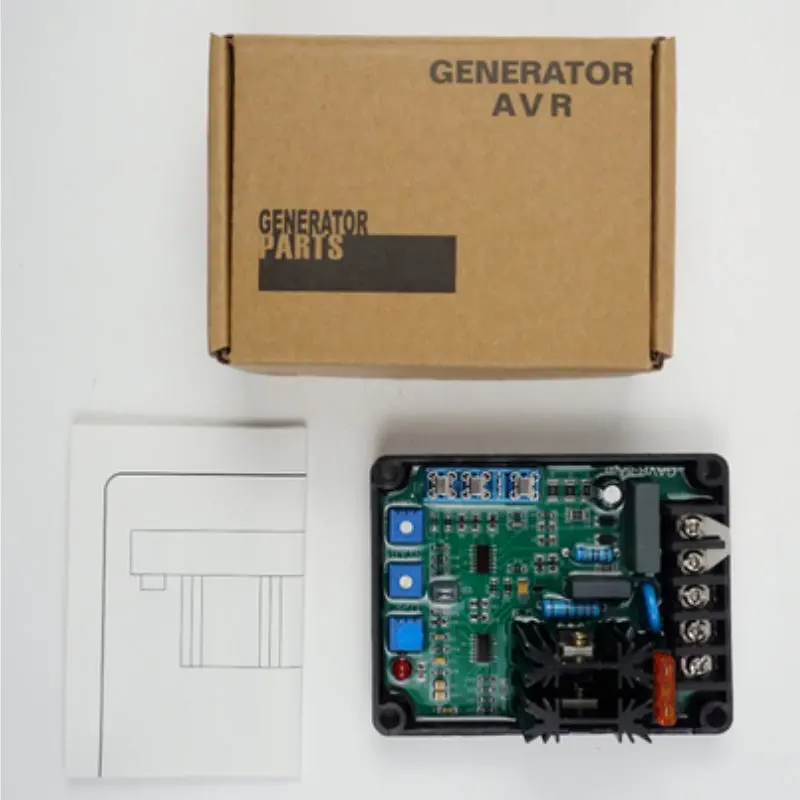

GAVR-8A NEW Universal Generator AVR Automatic Voltage Regulator
DESCRIPTION:
Type:AVR
Condition: new
PMN:GAVR-8A
Manufacturer Warranty: 1 Year
Features:
1.<+/-1% Reglation2.110/220/400 VAC Programmable Input
3.Rugged Compact Design
4.With Under Frequency Protection
5.Soft Start Voltage Ramping
6.EMI Suppression
7.Buit-in High Capacity 8Amp Fuse
Technical specification:
Input Voltage: 110/220/400VAC, 1 phase 2 Wire
POWER INPUT
Voltage:100-260V, 1 phase 2 Wire
Output Voltage: Max 90V dc @240V ac input
Current: Continuous 3.7A
Intermittent 5A for 10 secs
Resistance: 15 ohms min 100 ohms Max
Regulation
+/-1.0% RMS with 4% engine governing
Voltage Build-up:Residualvolts at AVR teminal>5VAC
THERMAL DRIFT
0.03% per deg. C change in AVR ambient
SOFT START RAMP TIME
2 seconds
EXTERNAL VOLTAGE ADJUSTMENT
+/-7% with 1 k ohm 1 watt trimmer
UNDER FREQUENCY PROTECTION
Set point: 95% Hz
Slope: 100-300% down to 30 Hz
Max. Dwell:20%volts/S recovery
UNIT POWER DISSIPATION
8 watts maximum
Thermal. Drift:0.03% per °C chage in AVR ambient
Under Frequency:60Hz system presets knee point at 55Hz
50Hz system presets knee point at 45Hz
Operating Temperature:-40°C to + 60°C
Storage Temperature:-40°C to + 85°C
Relative Humidity:<95%
