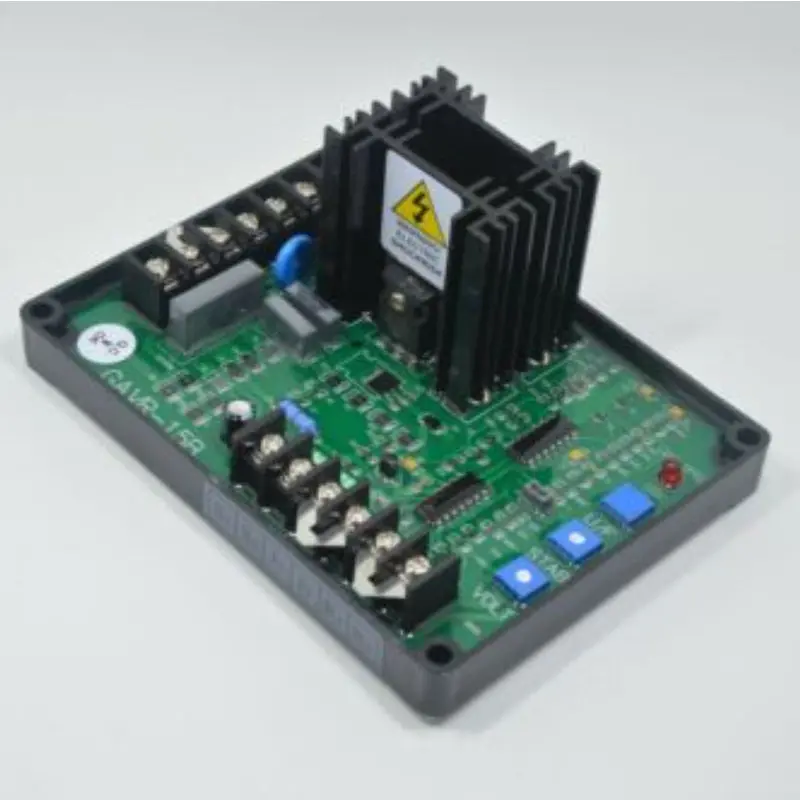

GAVR-15B Automatic Voltage Regulator AVR Control Module for Brushless Generator Genset Replacement Parts
DESCRIPTION:
Type:AVR
Condition: new
PMN:GAVR-15B GAVR15B
Manufacturer Warranty: 1 Year
Specification:
Model: GAVR-15B
Input power: R, N = 170V~265VAC 50/60Hz
Detection power supply: R, L = 170V~265VAC; R, H=380V~440VAC 50/60Hz
Maximum output: 15A 90VDC (at 240VAC input power)
Voltage regulation rate: ≤0.5%
Generator magnetic field resistance: Min. 9Ω
External potentiometer: 1kΩ, 1/2W ± 8%
Low frequency protection: If 60Hz generator is lower than 55Hz or 50Hz generator is lower than 45Hz, the regulator will be turned off immediately
Operating temperature: -40~60℃
Note:
1. Please make sure it will fit your machine before purchasing it. If you are not 100% sure this is what you need, please find out your engine model, series number and contact our Customer-service.
2. Please double check the part number of your item, matching information is for reference only.If you are unsure of the item, please contact us before buying to avoid unnecessary return, thanks!
3. Communication is the best way to solve the problem. If you have any problems after you receive the package, please contact us in time, before opening a return or case.
4.For more information please contact us info@diselmart.com. We will reply you in 24 hours.
