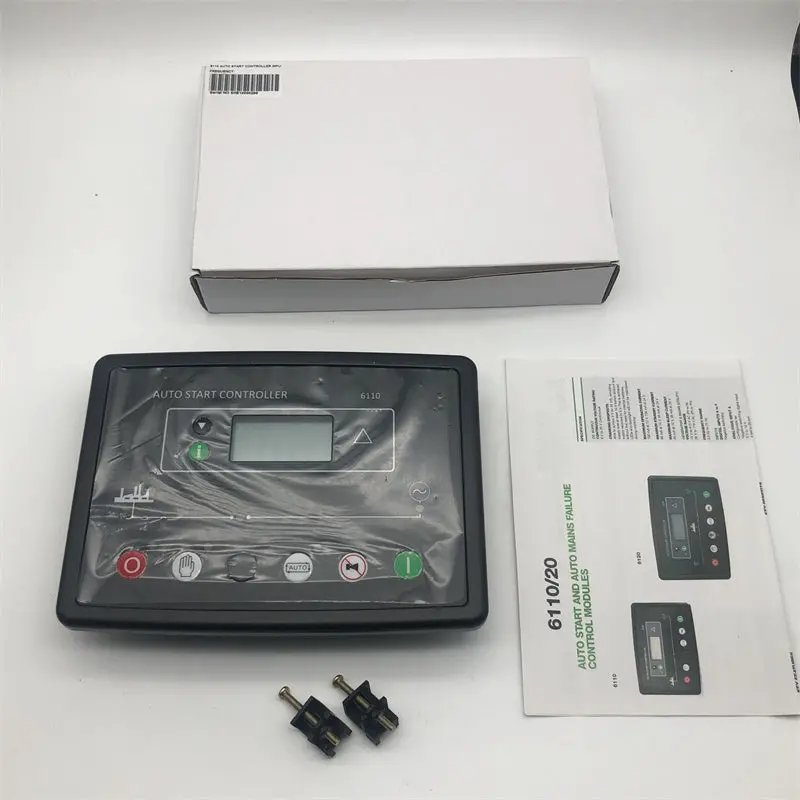

Replacement DSE6110 Auto Controller DSE 6110 for Generator Genset Alternator
DESCRIPTION:
Type:Auto Controller
Part Number：DSE6110
Condition: new，replacement
Manufacturer Warranty: 1 YearFeatures
The back-lit text LCD display
Front panel editing
LED and LCD alarm indication
Power Save mode
CAN and Magnetic Pick-up/Alt. versions available (specify on ordering)
PC and front panel configuration
6 Digital inputs
3 Analog inputs
6 Outputs (4 configurable on Magnetic Pick-up/Alt., 6 configurable on CAN version)
Configurable timers and alarms
Alternative configuration
Event Log (10)
Remote Start input
3 Phase generator monitoring
Current Monitoring and protection
Battery voltage monitoring
Engine pre-heat
Hours counter
Comprehensive shutdown or warning on fault condition
Specification
Operating Voltage DC8.0V to DC35.0V, Continuous Power Supply.
Alternator Input Range 15V – 360 V AC (ph-N)
3-Phase4-Wire 26V – 620 V AC (ph-ph)
3-Phase3-Wire 15V – 360 V AC (ph-N)
Single-phase2-wire 15V – 360 V AC (ph-N)
2-Phase3-Wire:
Alternator Frequency 50/60Hz
Speed Sensor voltage VPP 2.2 – 100Vpp (Peak to peak)
Speed Sensor Frequency 10000Hz (max)
Start Relay Output 16Amp Controller Power Voltage Output
Fuel Relay Output 16Amp Controller Power Voltage Output
Programmable Relay Output 1 7Amp 250VAC Voltage Free Output
Programmable Relay Output 2 7Amp 250VAC Voltage Free Output
Programmable Relay Output 3 16Amp 250VAC Voltage Free Output
Programmable Relay Output 4 16Amp 250VAC Voltage Free Output
Case Dimension 210mm x 152 mm x 48 mm
Panel Cutout 186mm x 141mm
C.T. Secondary 5A Rated
Protection Level IP55:When waterproof rubber seal installed between the controller and panel fascia.
IP42: When a waterproof rubber seal is not installed between the controller and the panel fascia.
Insulating Intensity Object: input/output/power
Quote standard: IEC688-1992
Test way: AC1.5kV/1min leakage current:3mA
Note:
1. Please make sure it will fit your machine before purchasing it. If you are not 100% sure this is what you need, please find out your engine model, series number and contact our Customer-service.
2. Please double check the part number of your item, matching information is for reference only.If you are unsure of the item, please contact us before buying to avoid unnecessary return, thanks!
3. Communication is the best way to solve the problem. If you have any problems after you receive the package, please contact us in time, before opening a return or case.
4.For more information please contact us info@diselmart.com. We will reply you in 24 hours.
