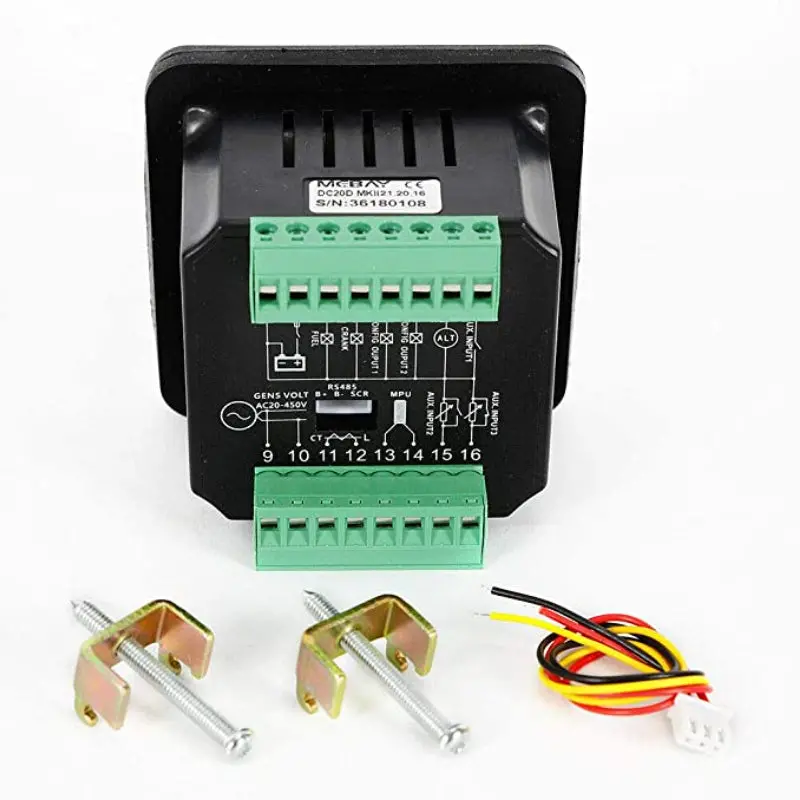

DC20D MKII Genset Controller Module Upgrade Generator fits for Diesel Gasoline Engine
DESCRIPTION:
Type:Controller
Condition: new，replacement
PMN:DC20D MKII
Manufacturer Warranty: 1 Year
Features:
Micro-computer Control
Man/Auto Start/Stop
5 Units LED tube Display
LED and Fault Alarm Code Indication
Two Group of programmed Relay output
Application for various kinds of Engine by self-setting
With RS485 communication port
Control:
Manual Start/Stop
Auto Start/Stop
Preheat Control
Auto idle control
Choke control
E.S.T control
Specification:
DC Supply: DC 8～36 V.
Power Consumption: DC 8～36 V.
Measuring Frequency:10～70 Hz.
AC input: AC 50～380 V.
Current measurement range:0-2000A.
Speed sensor Frequency:30-9999Hz
Relay output:
Fuel Output: MAX 5A.
Start Output: MAX 5A.
Configurable output1:MAX 2.5A.
Configurable output2:MAX 2.5A.
Excitation output: MAX 1A.
Size:78mm * 78mm * 55mm.
Panel cut-out:67mm * 67mm.
Protection Level:IP54 when waterproof rubber gasket is added between controller and its panel.
Operation Temperature :-30℃～70℃.
Storage Condition:-40℃～85℃.
Note:
1. Please make sure it will fit your machine before purchasing it. If you are not 100% sure this is what you need, please find out your engine model, series number and contact our Customer-service.
2. Please double check the part number of your item, matching information is for reference only.If you are unsure of the item, please contact us before buying to avoid unnecessary return, thanks!
3. Communication is the best way to solve the problem. If you have any problems after you receive the package, please contact us in time, before opening a return or case.
4.For more information please contact us info@diselmart.com. We will reply you in 24 hours.
