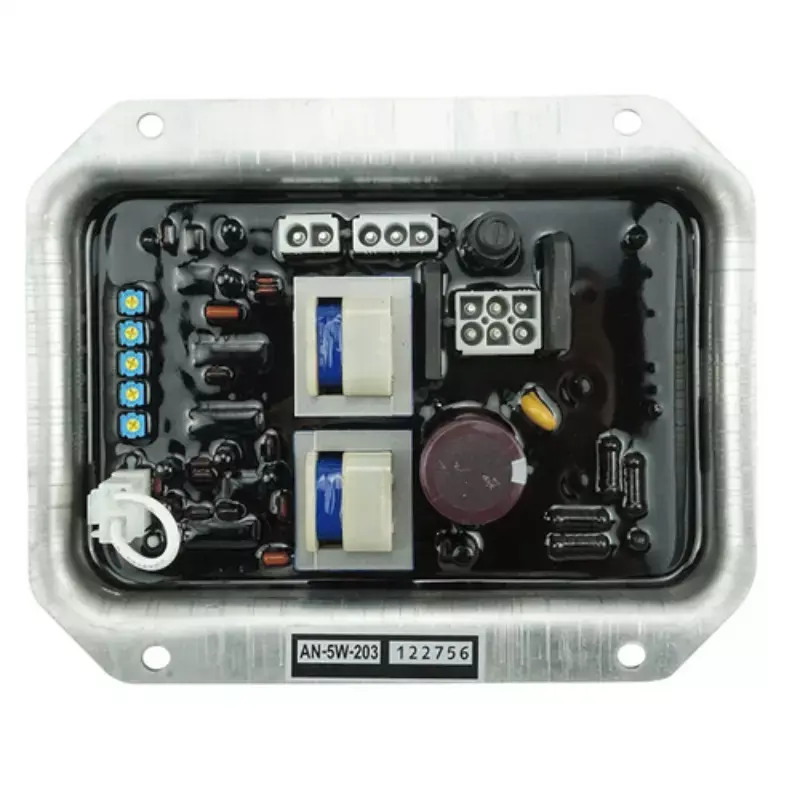

AN-5W-203 0601820662 Automatic Voltage Regulator AVR fits for Generator Spare Parts Diesel Alternator GenSet Replacement
DESCRIPTION:
Type:AVR
Condition: new
PMN:AN-5W-203 0601820662
Manufacturer Warranty: 1 Year
Applications:Apply for generator model: DLW-400, DCW-480, TLW-450Specification:
1.Auxiliary Winding Input: AC 55V-220V
2.Maximum Excitation Voltage Input: 120V/5ADC/10S
3.Voltage Input Of Main Winding: 400VAC 50HZ/60HZ
4.Low Frequency Protection 50HZ/60HZ
5.Generator Field Resistance ≥ 5Ω
6.Steady State Voltage Regulation Rate ≤±0.5%
7.Voltage Regulation Range ≥ 15%
8.Minimum Residual Excitation Voltage ≥ 5V/30HZ
9.When the external potentiometer is 1KΩ/1W, the voltage is fine-tuned by ±12%; when the external potentiometer is not used, the connecting piece is shorted.
Feature:
1.The AN-5W-203B Voltage regulator is a kind of sealed electronic device, which can adjust the rectifier output power of exciter by controlling the low-power exciter magnetic field.
2.When the output voltage is higher than the set value, the excitation board will control the output voltage to become low, and the excitation current will decrease accordingly.
3.On the contrary, if the output voltage is not controlled or controlled at a small angle, the voltage will rise.
Note:
1. Please make sure it will fit your machine before purchasing it. If you are not 100% sure this is what you need, please find out your engine model, series number and contact our Customer-service.
2. Please double check the part number of your item, matching information is for reference only.If you are unsure of the item, please contact us before buying to avoid unnecessary return, thanks!
3. Communication is the best way to solve the problem. If you have any problems after you receive the package, please contact us in time, before opening a return or case.
4.For more information please contact us info@diselmart.com. We will reply you in 24 hours.
